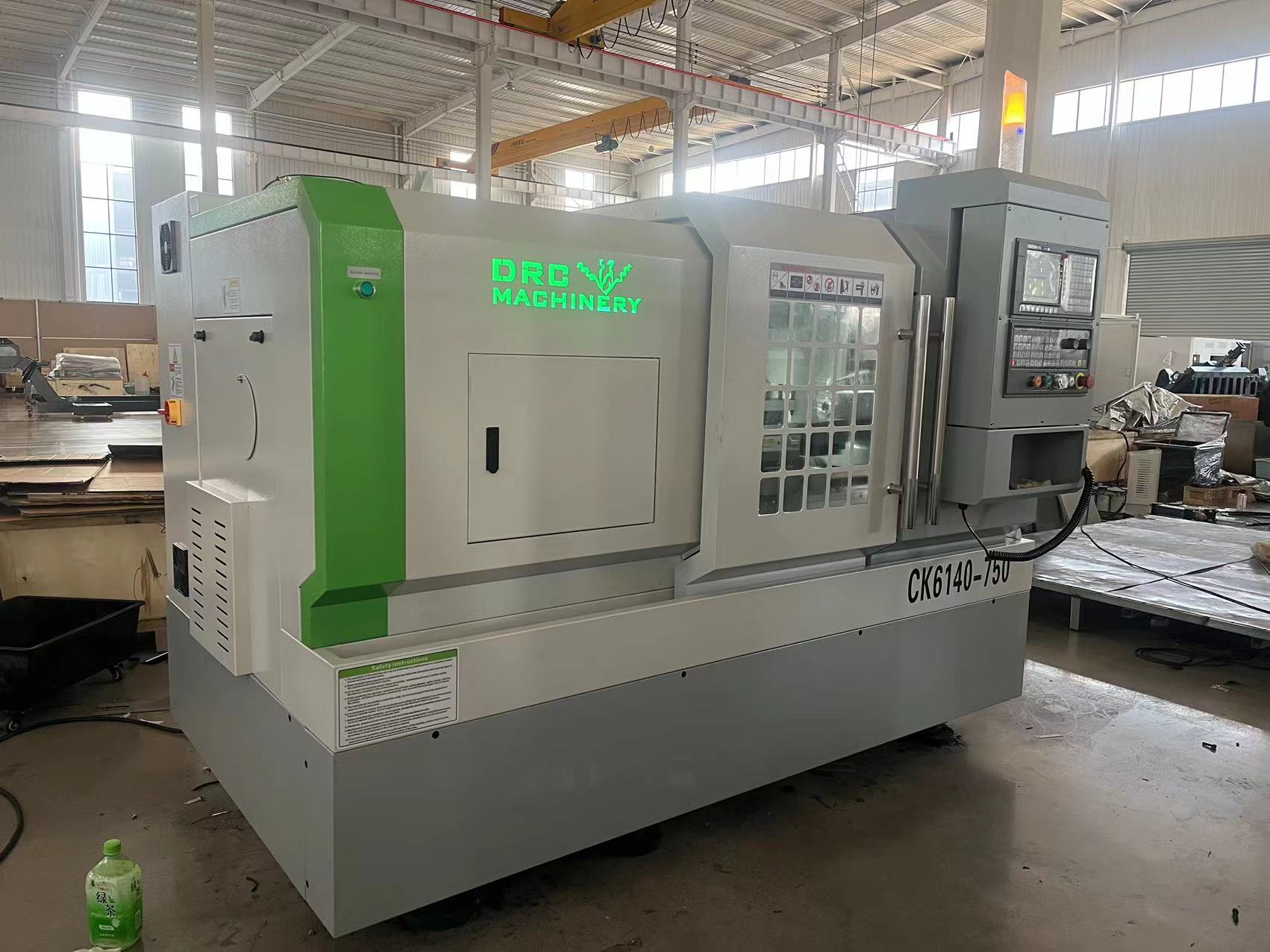

CK6140 Токарный станок с ЧПУ

Прецизионный токарный станок с ЧПУ Ck6140 Горизонтальный токарный станок с плоской станиной Токарный станок с ЧПУ

Отправить заявку

Описание

маркер

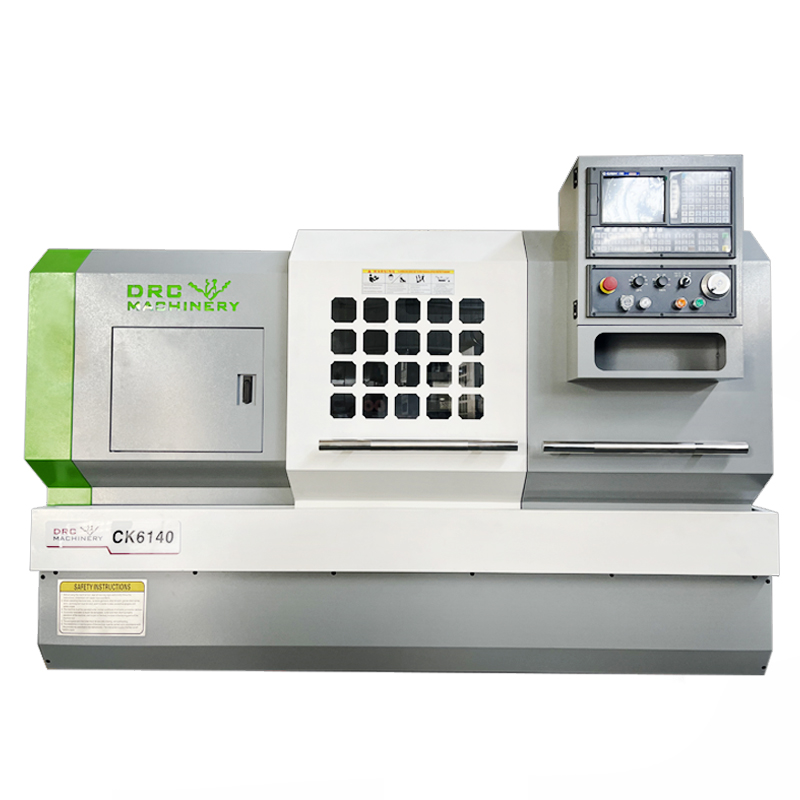

Siemens Flat Bed Cnc Lathe Price CK6140 Horizontal Automatic Turning CNC Lathe Machine

◆This series of machine tools is a mature product mainly exported by Dalian DRC Machine Tool Co., Ltd. The whole machine has a compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention.

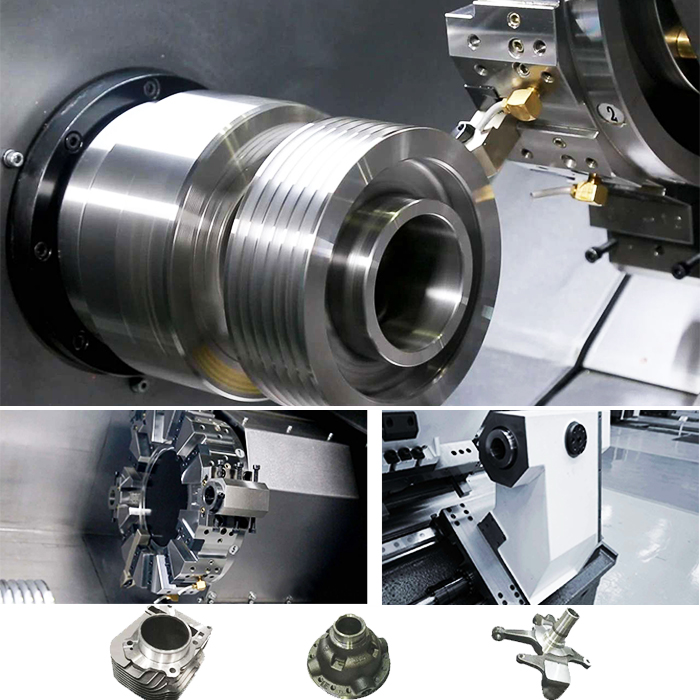

◆Optimized design of the headstock, suitable for turning of disc and shaft parts. It can process straight, arc, metric and inch threads, and multi-threaded. It is suitable for turning discs and shafts with complex shapes and high precision requirements. Parts Processing.

◆Both the machine tool guide rail and the sliding saddle guide rail adopt hard guide rails of special materials, which are super hard and wear-resistant, durable, and have good machining accuracy retention after high-frequency quenching.

◆Adopt domestic famous ball screw and high-precision screw bearing.

◆Each lubrication point adopts a forced automatic lubrication device for fixed-point and quantitative lubrication of the lead screw and guide rail. When there is an abnormal state or the amount of oil is insufficient, a warning signal is automatically generated.

◆The guide rail is equipped with a scraping device to prevent the guide rail from being corroded by iron filings and coolant, and to facilitate the cleaning of the iron filings.

Model	CK6140*750mm (GSK980TC3 system)
Processing ability	Unit ( mm )
Max. swing over bed	400
Max. swing over slide	240
Max. Processing length	750mm(Optional:500/1000/1500)
Travel
X/Z axis travel	280/750
Spindle nose	A2-6
Spindle
Spindle bore diameter	82
Pull tube hole diameter	65
Spindle inner hole taper	40°
Spindle series	stepless
Max. spindle speed	150-2000 rpm
Workpiece clamping mode	Manual chuck K8-200
Main motor power	5.5/7.5 kW
Feed turret
X/Z axis torque	5/7.5 N.m
X/Z axis rapid speed	6/8 m/min
Turret type	Electicity
Tool shank size	20×20
Turret repeatability	≤0.004
Tailstock
Tailstock diameter	60
Tailstock travel	100
Tailstock center taper	Morse 4#
Others
Machine net weight	1800kg
Machine dimension（L×W×H）	2200×1160×1620
Power supply（power/ electric current)	11kW/20A
Standard configuration

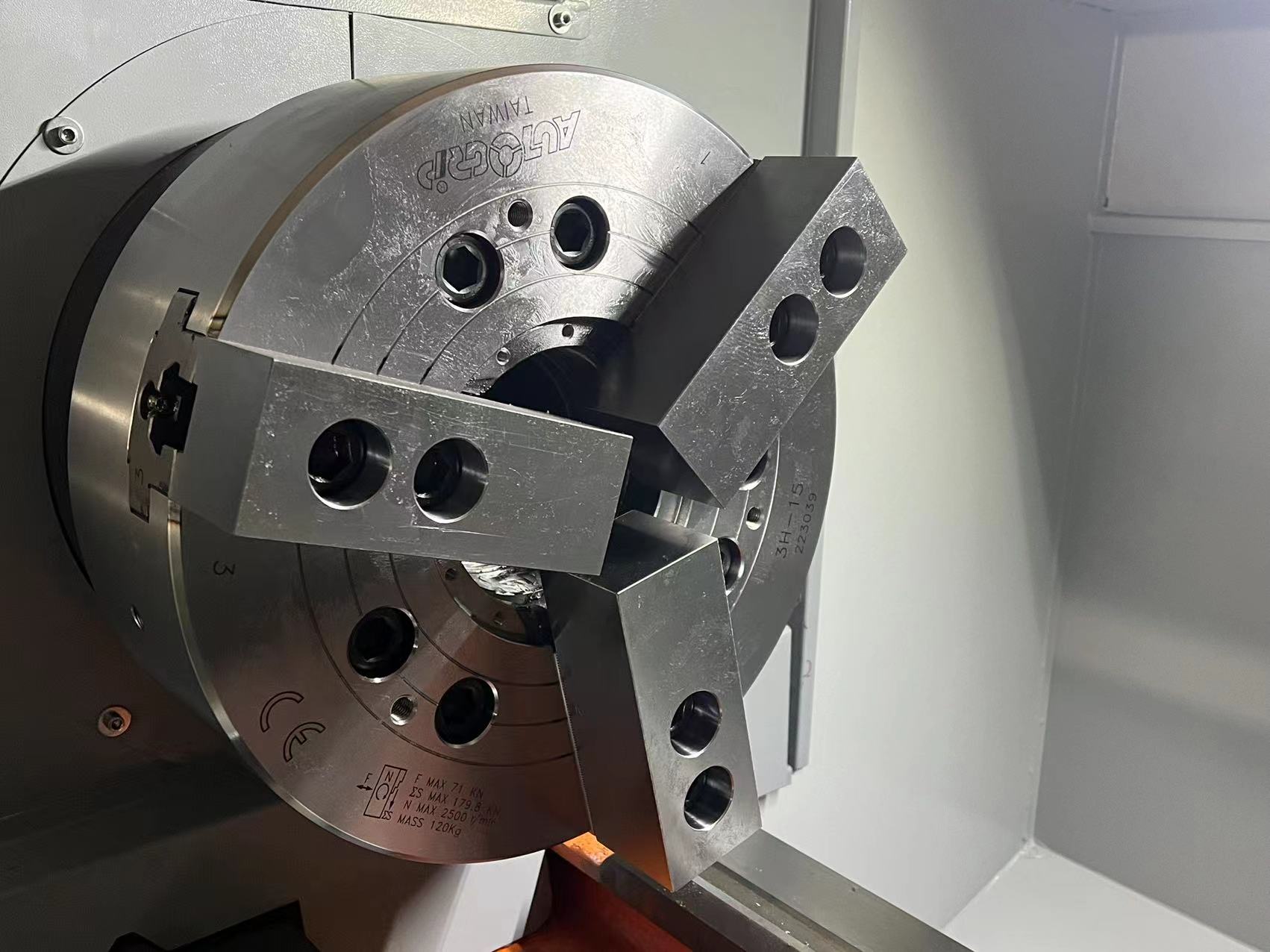

Chuck	Ф200 manual chuck
Tailstock	Manual tailstock
X axis ball screw	Domestic（Qishan）FD3210-889-1035
Z axis ball screw	Domestic（Qishan）FD2506-407-530

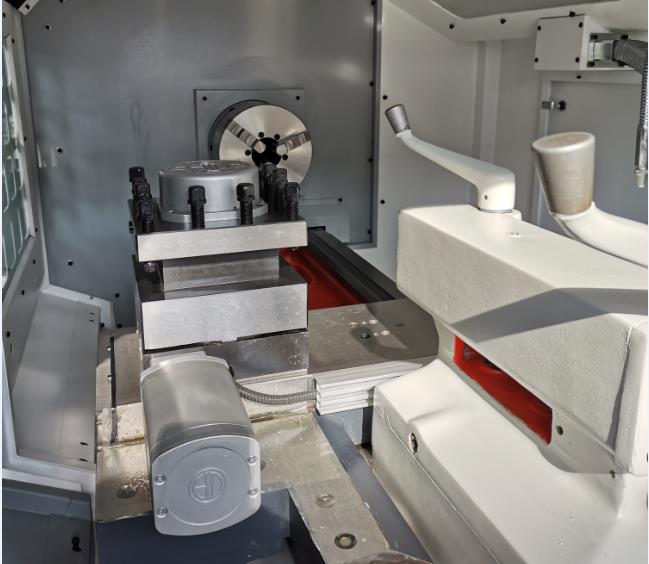

Electricity turret	4 position
X、Z axis screw bearing	Domestic(Derun)
Spindle bearing	Domestic P5
Machine casting	Highquality resin sand casting
Spindle assembly	Assembly spindle
Oil paint	Can be customized color
Lubrication	Domestic
