CK0620A Швейцарский токарный станок с ЧПУ

Швейцарский токарный станок с ЧПУ CK0620A Небольшой прецизионный токарный станок с ЧПУ для металлообработки

Отправить заявку

Описание

маркер

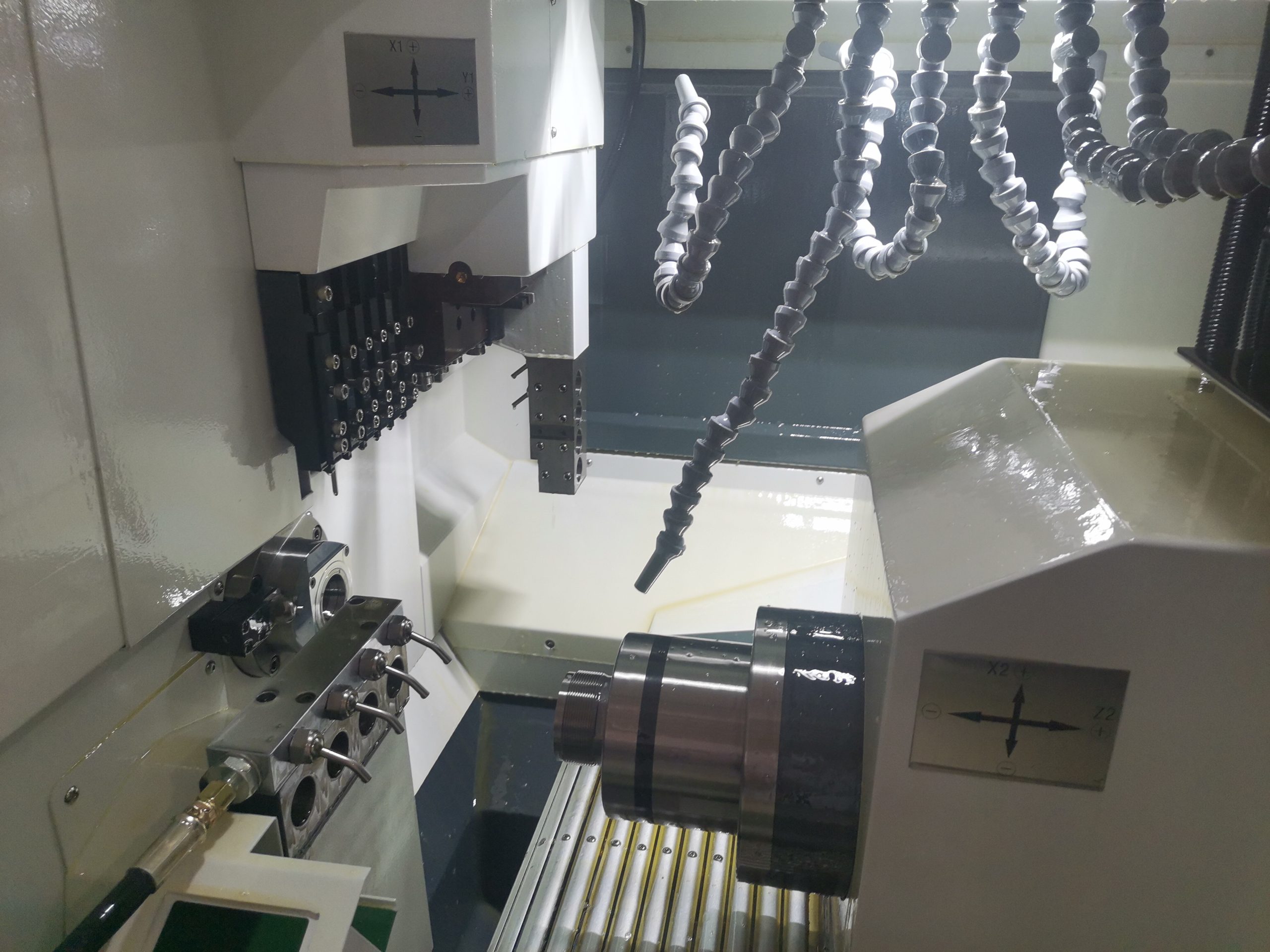

Swiss CNC Lathe CK0620A Small precision gang type CNC lathe for metal working

CNC Lathe features :

Practical small precision gang tool type CNC lathe, it has the characteristics of practicality, convenient operation and high machining accuracy. It can realize the processing of complex parts such as straight line, taper, arc, thread, etc. It is especially suitable for mass production processing of complicated shape parts. Working with the center frame to process slender shaft workpieces is as convenient as a walking machine. The CNC system has perfect functions and easy operation. Equipped with automatic feeder, automatic production can be realized. Adding a center frame can process slender shafts like a walking machine. The clamping size of the center frame chuck can be finely adjusted. Economical, easy-to-operate and miniaturized CNC lathe. It is suitable for mass processing and single-piece processing of various precision parts such as processing instruments, meters, electronic connectors, clocks, glasses, small hardware, etc. It can meet various turning requirements of different users.

Small Precision CNC Lathe CK0620A Specificaiton:

High rigidity casting bed;

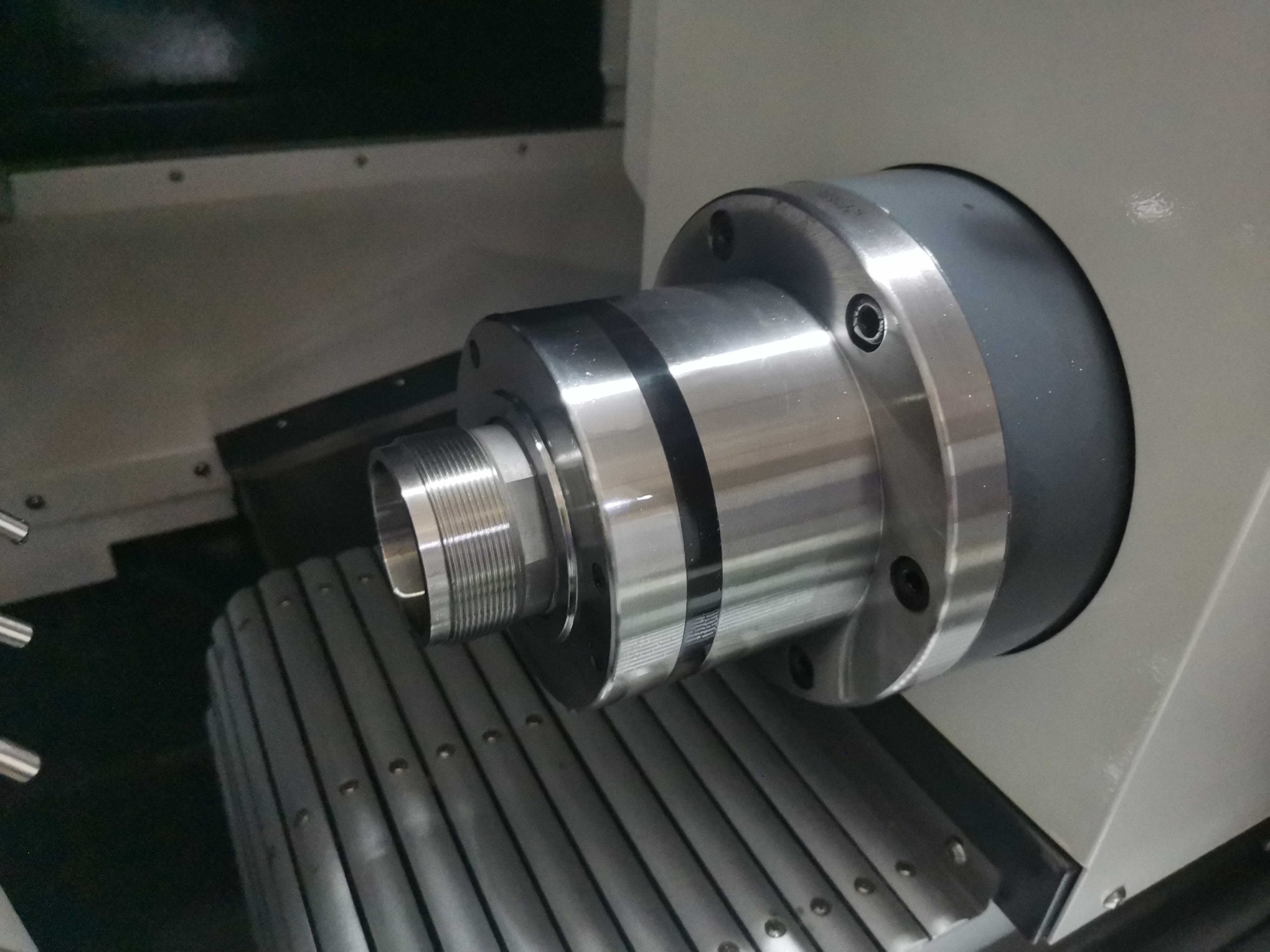

High precision spindle bearing;
Bed guideways industively hardened.

Higher Accuracy Swiss Small Cnc Lathe Machine Specification	CK0620A
rated voltage	3 phase AC 380V
rated frequency	50HZ
total input power	3.2kw
BYSK	YZ150
Minimum setting unit	0.001mm
Minimum moving unit X	0.0005mm
Minimum moving unit Z	0.001mm
maximum program size	±9999.999
Cutting speed	1-4000mm/min
X / Zrapid travel speed	15 / 18m/min
Max. bar throught hole	Φ20mm
spindel through diameter	Φ21mm
Max. revolving dia.	Φ200mm
Spindle center height from the ground	1000mm
Spindle speed range	0-5000rpm
spindle motor power	2.0kw
X / Zstroke	300mm（diameter value）/ 200mm
X / Z axis servo motor power	0.4kw / 0.4kw
Guideway	Linear guideway
Cutting motor power	0.09kw

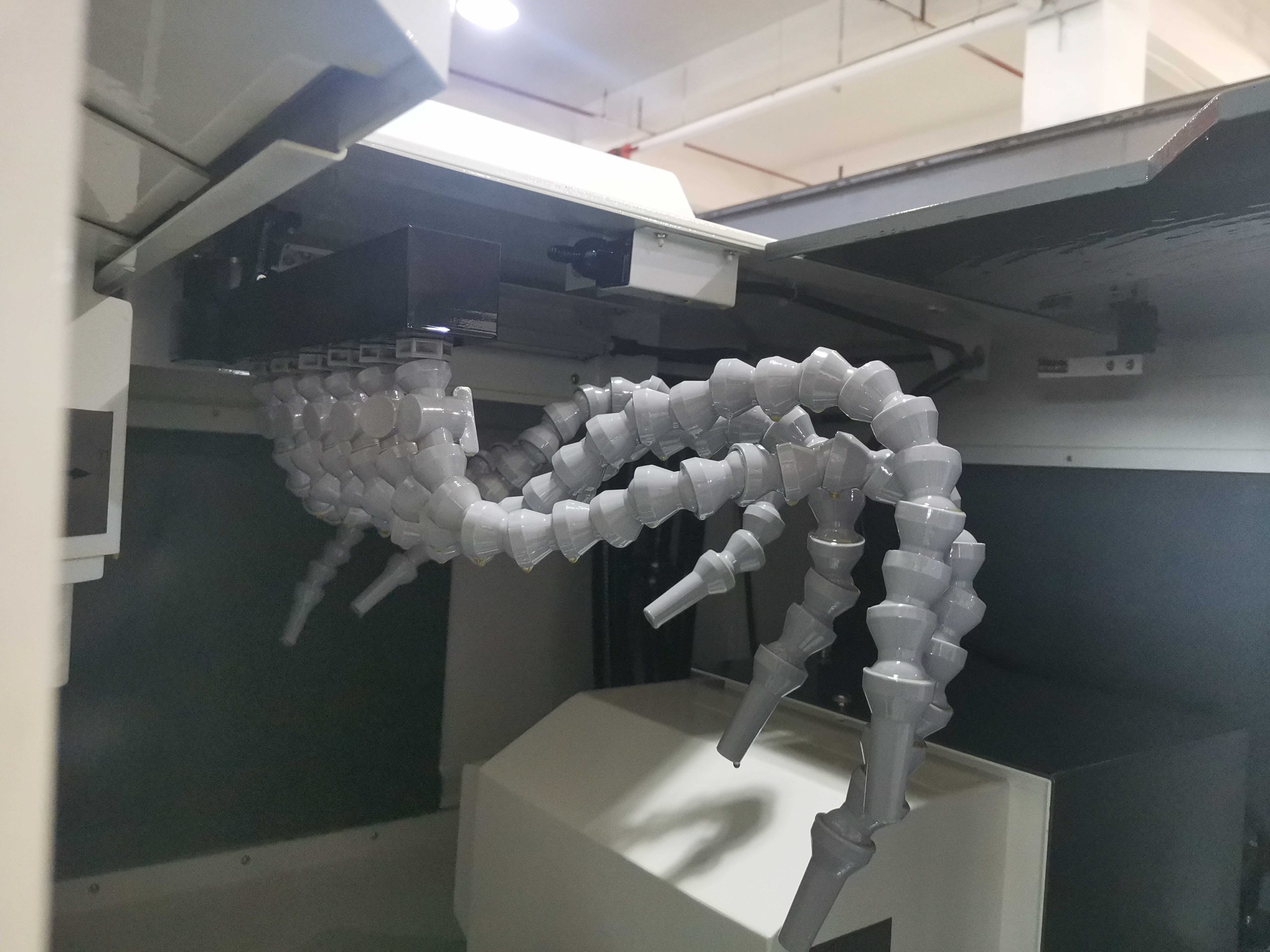

Capacity of coolant container	150L
Motor power	25W
Capacity	1L
Input air pressure	0.4--0.6Mpa
LWH	10689801450mm
Weight	610kg
