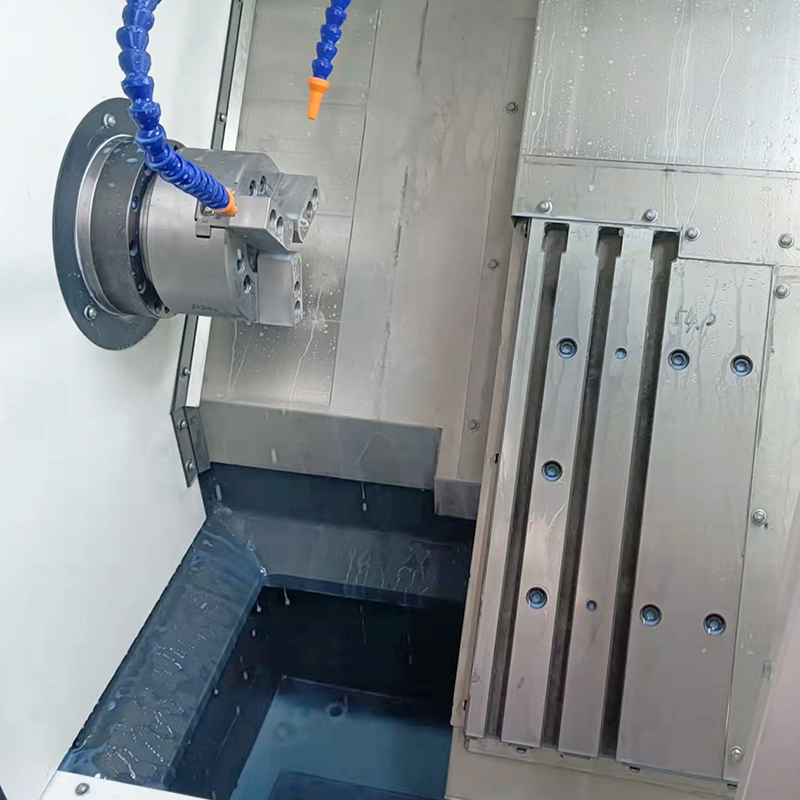

Slant Bed CNC Metal Turning Lathe Main features:

This machine is applicable to automobile, motorcycle, electronics, aerospace, military, oil and other industry. It could turn the conical surface, circular arc surface, end face of the rotary parts, could also turn various metric and inch threads etc,with higher efficiency and higher precision in bulk. 1. 45 degrees slant bed CNC lathe machine 2. Higher accuracy Taiwan linear guide 3. Chip conveying capacity is large and convenient, customer could choose 4. Chip conveying in the front or in the back 5. X, Z direction servo motor through high torque low inertia flexible coupling directly connected with the screw, screw supporting the use of pre-stretching structure 6. Gang type tool post 7. high-speed high-precision high-rigidity shell-type spindle unit, servo spindle motor, can achieve higher spindle speeds. 8. Use advanced centralized lubrication system uses 9. machine with full protection design,waterproof debris reliable, easy maintenance.

CNC Lathe Use:

This machine is mainly used for processing various shafts, disk parts, turning can be all kinds of screw thread, arc, cone and plane of internal and external surface can satisfy the ferrous and non-ferrous metals the speed requirement of high-speed chip. Suitable for cars, motorcycles, electronics, aerospace, military industry and other industries to high efficiency, large quantity and high precision of parts processing. Machining precision can reach level 7.

Model	TCK 6340 (GSK980TC3 system)
Standard accessories	Unit ( mm )
Maximum turning diameter of bed	Φ400
Maximum turning diameter of cross slide	Φ140
Maximum processing length	200(Row of knives)
Standard chuck specifications	6 inch Bedford/Taiwan
X axis maximum stroke	400
Z axis maximum stroke	300
Spindle speed	3500rpm
Spindle speed stage	stepless
Spindle end code	A2-5
Spindle through hole	Φ48
Pull tube through hole	Φ40
Cutting feed rate	1-15000mm/min
X/Z motor torque	6/6/NM(X direction with brake)
X/Z axis rapid movement rate	24/24m/min
Tool body size of turning tool	20*20
Spindle motor power	5.5KW

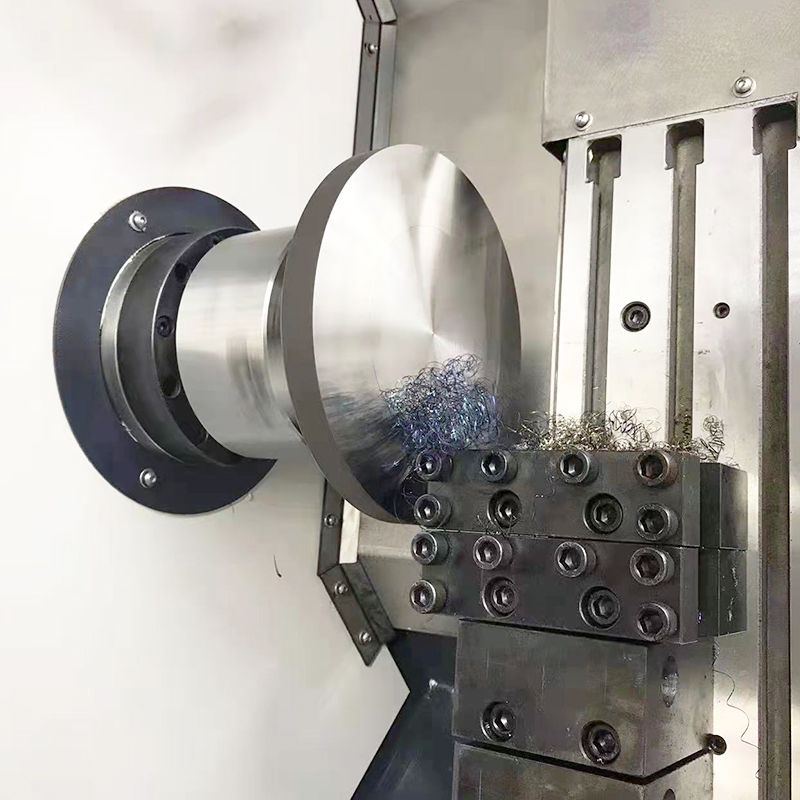

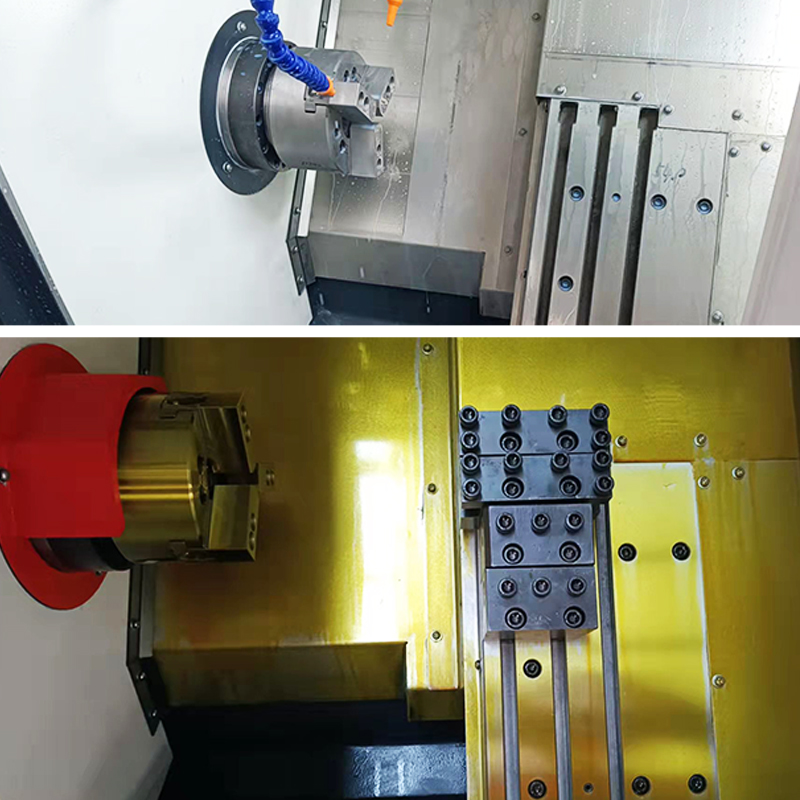

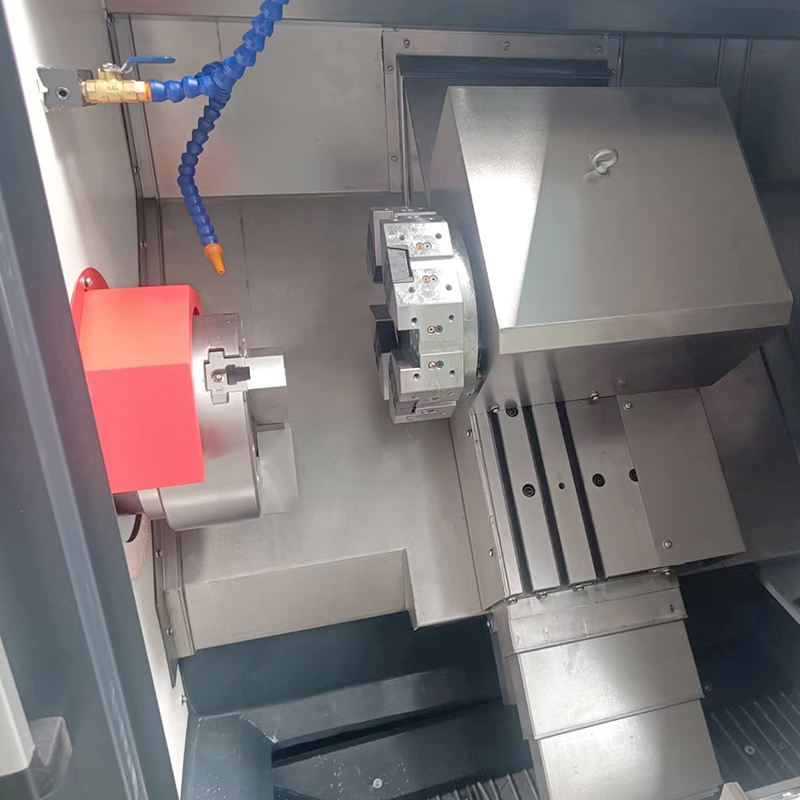

Turret type	4 rows of knife holders(Optional):6/8Tool Turret
Guide way type	45 degrees of inclined rail
Screw bearing	25TAC62
The X/Z axis screw specifications	2510/3210
Dimensions (length × width × height)	230015001750
Total Weight	2200KG
Main accuracy index of machine tool
Test items	Standard tolerance(mm)
Periodic axial movement of the spindle	0.005
Radial runout of the positioning cone of the	0.005
Position	X:±0.003 Z:±0.003
Repeat positioning accuracy A	X:±0.003 Z:±0.003
Diameter consistency	0.01/150
Flatness	0.02/φ200
Thread pitch product error	0.010/50
Surface roughness	Ra1.6μm
