Токарный станок с ЧПУ HT5 с наклонной станиной

3-осевой токарный станок с ЧПУ с наклонной станиной Токарный станок с ЧПУ HT5 Токарный станок с ЧПУ с наклонной станиной FANUC Токарный станок с ЧПУ

Отправить заявку

Описание

маркер

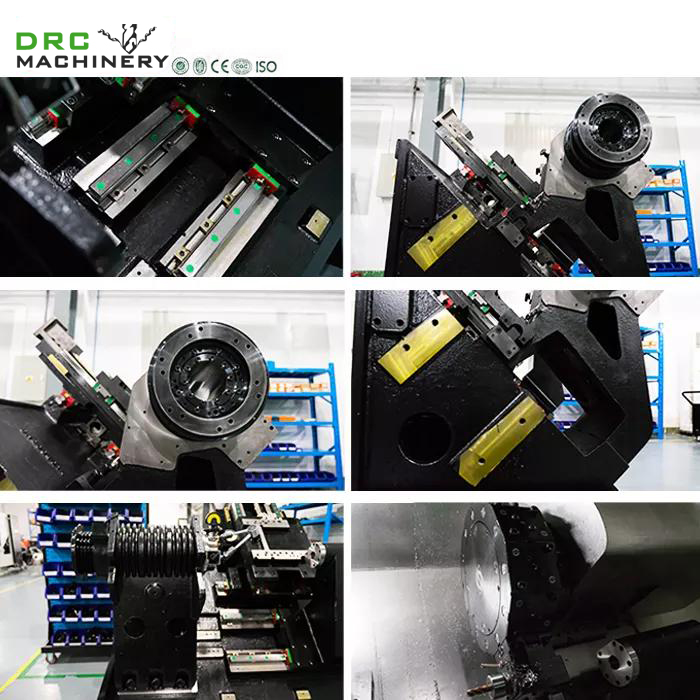

HT5 CNC lathe is a two-axis linkage, fully closed-loop CNC machine tool. The machine machine-electric-hydraulic integrated layout adopts a fully enclosed protective cover, the door opens to the left, and the operating table is located on the right end of the fixed protective cover, and the ergonomic swing design makes the operation more convenient. Each servo feed shaft adopts high-speed silent ball screw, elastic coupling is directly connected, fast moving speed, low noise, high positioning accuracy and repeated positioning accuracy; the servo motor is equipped with an absolute value encoder, no cumulative error, no memory, No need to find a reference point, the position information will not be lost after the power is cut off. The machine tool has strong functions, high precision, reasonable layout, beautiful appearance, easy operation and convenient maintenance.

Parameter
Spindle head	type	FL 140 h5 / A2-6
Spindle maximum speed	rpm	4500
Max. Torque	N×m	112
Spindle power	kW	11-15
Chuck diameter	mm	210
Spindle bore	mm	74
Front bearing diameter	mm	100
Spindle bearing lubrication	type	Grease
Linear motion lubrication	type	Oil
Speed range	rpm	5-4500
Work area
Maximum swing over bed	mm	576
Maximum cutting diameter	mm	390
Maximum cutting length	mm	500
Maximum bar capacity	mm	51
Travel of Z-axis	mm	525
Travel of X-axis	mm	225
Ball screw
X/Z axis ballscrew DxP	mm	32 x 10
Feed
Rapid traverse Z	m/min	30
Rapid traverse X	m/min	30
Feed force
Feed force X/Z	N m	4500
Number of axis		2
Measuring system
X/Z axis measuring system		Absolute rotative
(X / Z);VDI/DGQ 3441 Positioning	mm	0.008/0.008
(X/ Z);VDI/DGQ 3441 Repeatability	mm	0.004/0.005

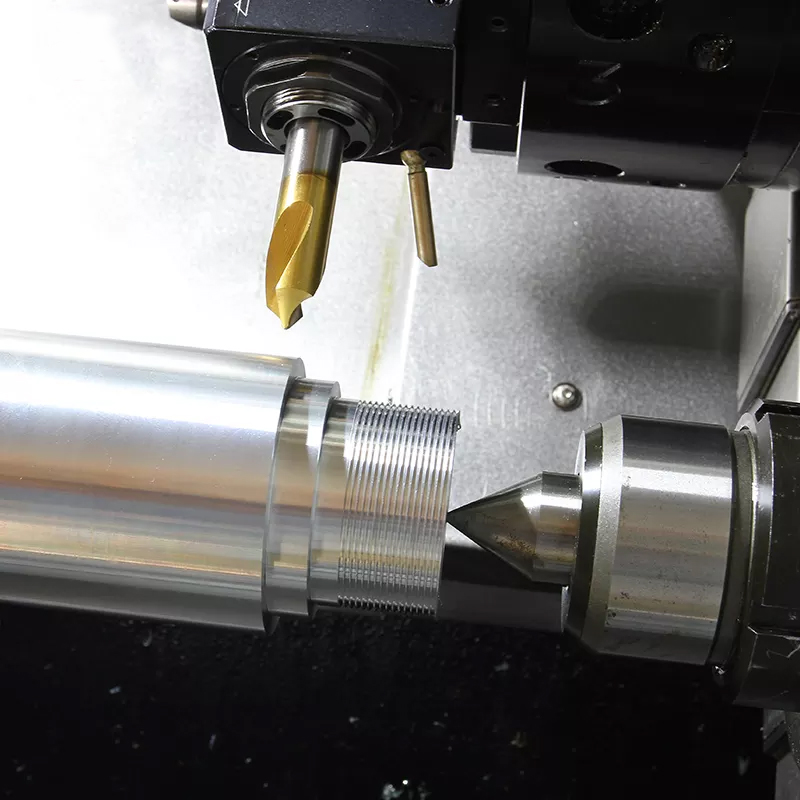

Tailstock
Travel of tailstock	mm	500
Tailstock moving type		Hydraulic programmable
Max. pressure of tailstock	N	4000
Tailstock centre sleeve	type	MT 4

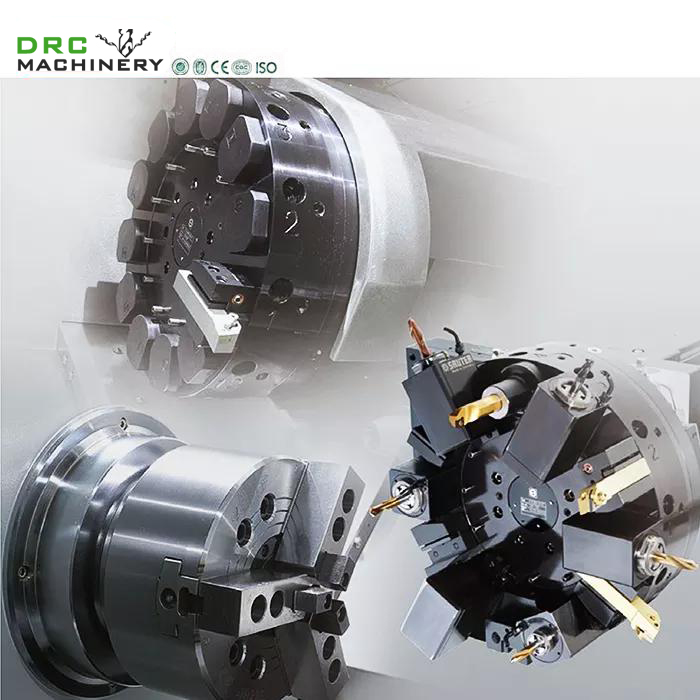

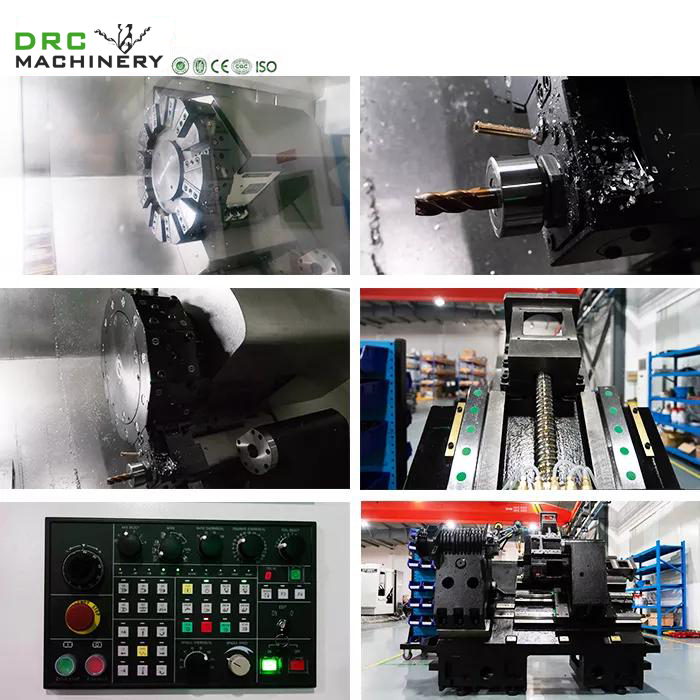

Servo turret
No.of tool stations	-	12
Turret disk type	-	Slot disk
Tool attachment	mm	□25, Ø40
Electrical specifications
Voltage	V	380 ±10%
Frequency	Hz	50 ± 1%
Max. installed power	KVA	20
400v lie protection fuses	A	63
400v line automatic circuit breaker	A	33
Connection cables section	mm2	4 x 10
Hydraulic unit
Max. working pressure	bar	40
Reservoir capacity	l	35
Pump flow	I/ min	24
Coolant system
Capacity with tank	l	180
Pump delivery	l /min	30
Pump pressure	bar	5
Noise level
Less than	dB (A)	≤80
Control system

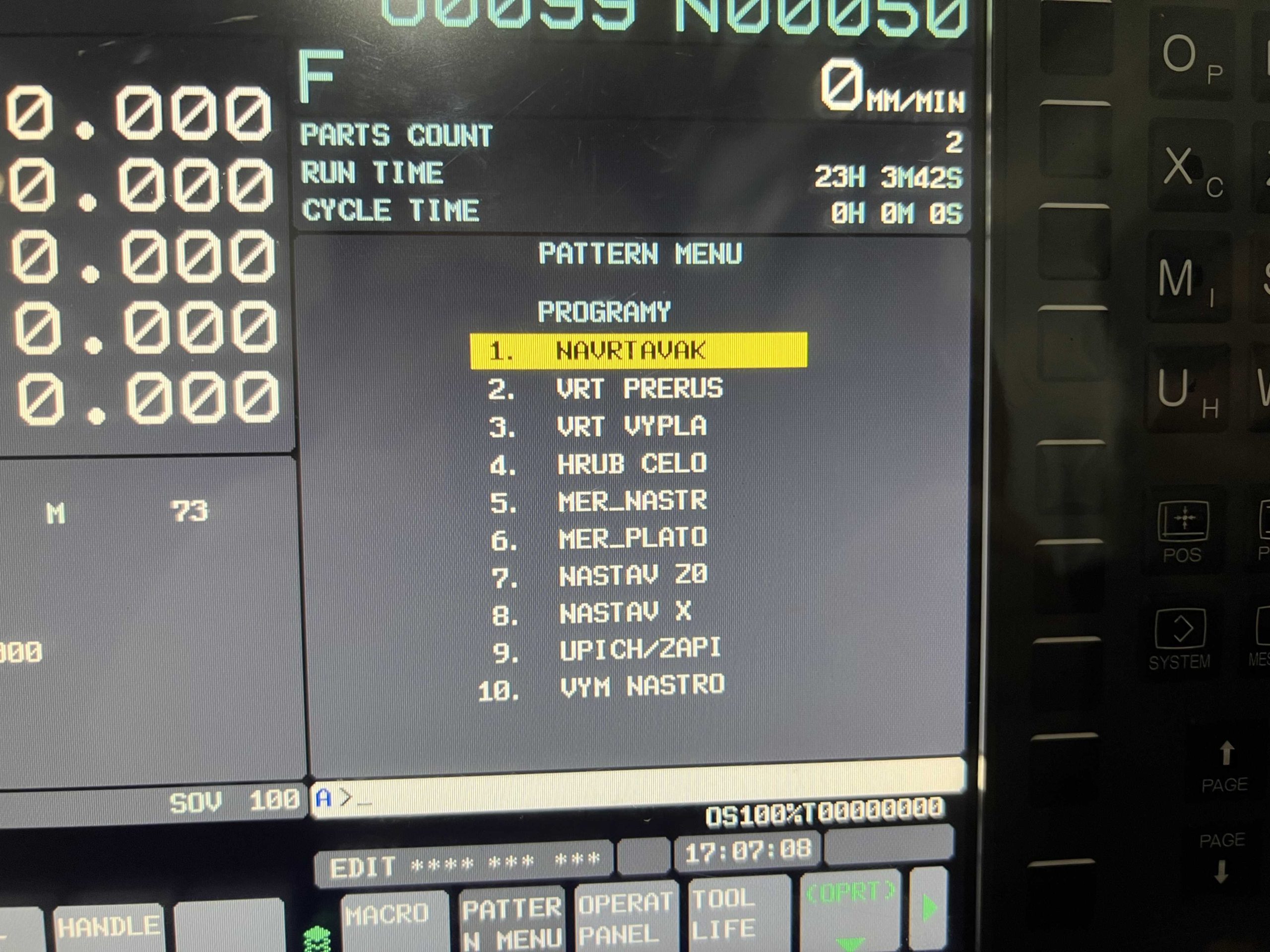

FANUC	-	0i-TF plus
Net weight	kg	4000
Slant angle, Material	-	45°, HT300
